HSM Jet Spindle
More and more CNC machine manufacturers and metalworking factories worldwide are expanding capacity by upgrading existing machines with the coolant-driven HSM Jet Spindle (under trade names SPINJET/Typhoon).
The Jet Spindle offers an ideal solution for a wide range of semi-finishing and finishing machining applications such as milling, drilling, thread milling, engraving, chamfering/deburring and fine radial grinding.
Easily adapted to existing CNC machines, the HSM Jet Spindle provides immediate enhancement in performance, machining time, surface quality and tool life.
In addition, the Jet Spindle technology allows operators the ability to monitor the rotational speed of cutting tools in real-time; optimizing cutting conditions for even more all-around machining efficiency.

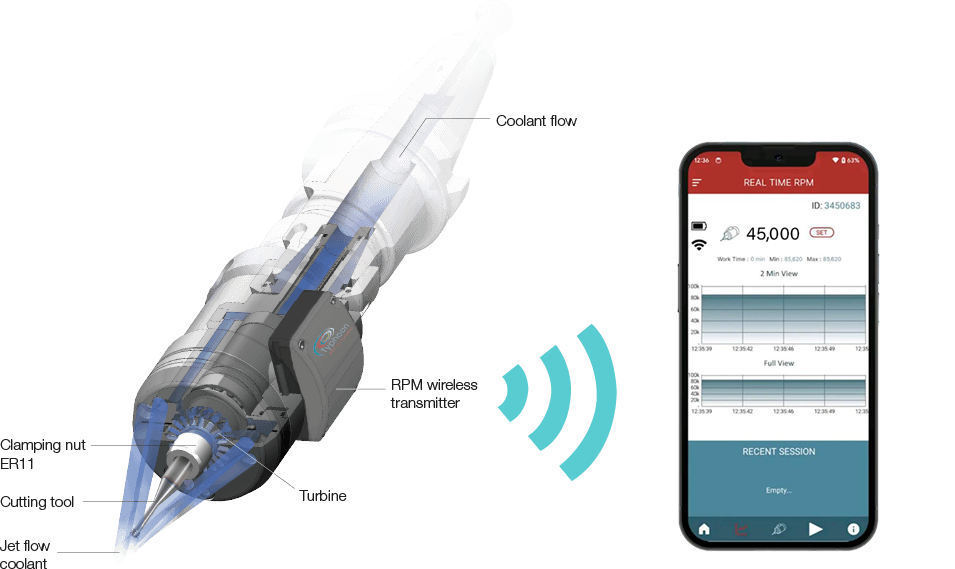

Coolant-driven Technology
The HSM Jet Spindle system uses the machine’s existing coolant or cutting fluid supply as a pressurized energy source, with performance levels at 4 times the output, without sacrificing accuracy.

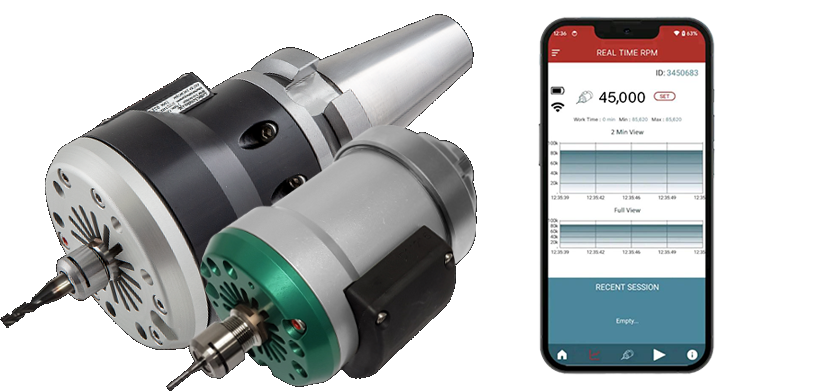

The Jet Spindle can be fitted to a wide range of CNC machines, using small diameter cutting tools:
- The GreenJET model runs on coolant pressure of 20 – 40 bar and rotating a turbine in the range of 35,000 to 55,000 RPMs.
- The HPC Jet Spindle utilizes coolant pressure of 15 – 70 bar, rotating a turbine in the range of 18,000 to 45,000 RPMs.
Utilizing coolant or cutting fluid as a power source available in the machine, eliminates the cost and hassle of external power feeds – air or electricity.
Plug & Play
The HSM Jet Spindle is a convenient “plug & play” device, enabling stress-free machining without the need for operator intervention.
The compact design is engineered for a perfect fit into the ATC or tool magazine, as with any other standard tool, automatically clamping it onto the CNC machine’s original spindle.
The HSM Jet Spindle is quickly prepped for operation using a standard tool holder with a collet chuck. Cutting tools are clamped with an ER11 spring collet.
Compatible
Easily mounted on all Milling Centers & Turning Centers/Lathe Machines.
Turn Mill
Turning
Milling Centers
Contact Us
The HSM Jet Spindle is hard at work increasing productivity and profits in metalworking factories worldwide.
Contact us for further information about how our high-speed coolant-driven spindle technology can help you.
