MICRO LINE

Colibri Spindle Products

MICRO LINE 00 45 60 90

MICRO LINE

SMALL & FAST!

The MICRO Line Jet Spindles (00, 45, 60 & 90 degrees), with a solid shell of titanium and assembled from only six parts, is built for powerful, accurate work in small and difficult-to-reach spaces. Enables speeds from 18,000 to 40,000 rpm while the main machine spindle remains idle. Ideal for a wide range of semi-finishing and finishing applications by use of small cutting tools intended for milling, drilling, thread milling, engraving, chamfering and deburring.

POWER / SPEED / EFFICIENCY

Significantly increases spindle speed using coolant pressure alone
Instant access in hard to reach spaces
Super compact – fits anywhere
Can be used as an additional axis, minimizing collision risk

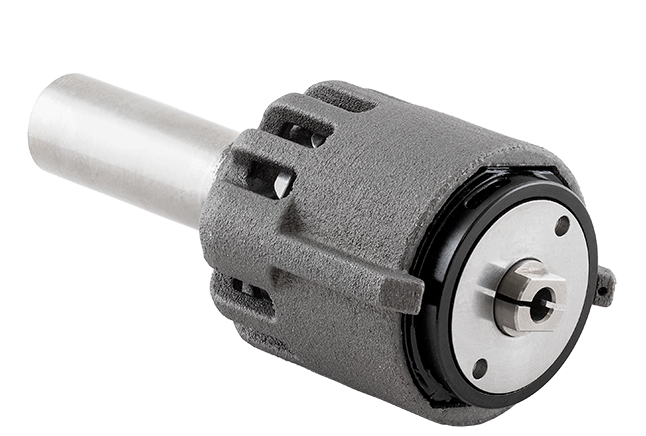

MICRO 00

JET SPINDLE OPERATING PARAMETERS				MICRO LINE
COOLANT	15 BAR	20 BAR	40 BAR	Terms of Use
Min Supply Diameter	4 mm			Collet	1.6, 2.0, 3.0, 3.175 mm
Min flow rate	10 L/min	12 L/min	20 L/min	Accessories (optional)	ST 20X100 ER16 / ER16 SEAL 10 AA
Speed	18,000 RPM	23,000 RPM	40,000 RPM	Warranty	6 months

Cutter [mm]		P	M	N	S
Drilling		0.1 – 2.0
Ball-Nose [1]		0.1 – 3.0
Chamfering [1]		0.1 – 3.0
Lollipop [1]		0.1 – 3.0
Barrel		0.5 – 3.0
Helical Milling		0.1 – 2.0
Engraving [1]		0.1 – 3.0
[1] Effective DC (DCap) – Cutting diameter at cutting depth ap

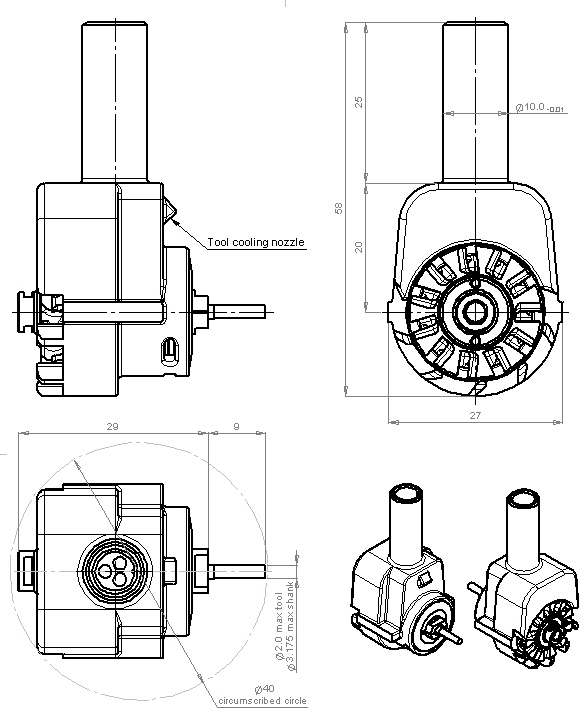

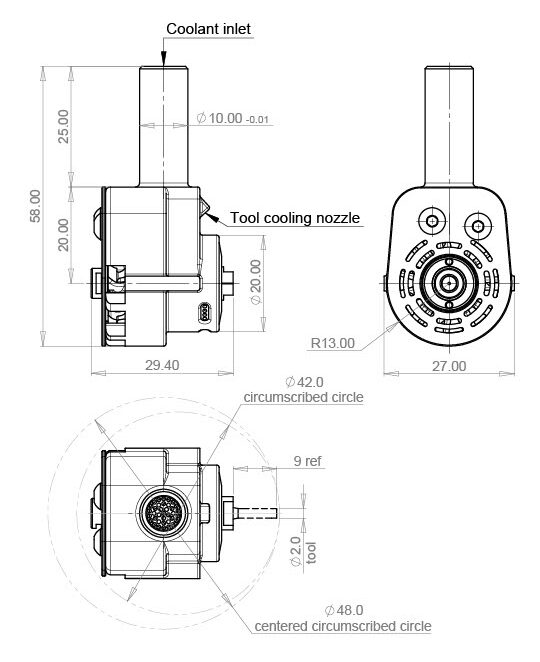

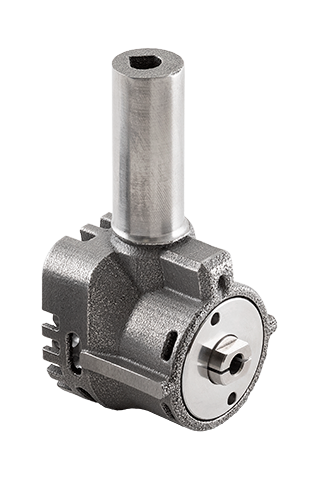

MICRO 45 / 60 / 90

JET SPINDLE OPERATING PARAMETERS				MICRO45/60/90
COOLANT	20 BAR	40 BAR	Terms of Use
Min Supply Diameter	4 mm		Collet	1.6, 2.0, 3.0, 3.175 mm
Min flow rate	12 L/min	20 L/min	Accessories (optional)	ST 20X100 ER16 / ER16 SEAL 10 AA
Speed	35,000 RPM	53,000 RPM	Warranty	6 months

Cutter [mm]		P	M	N	S
Drilling		0.1 – 2.0
Ball-Nose [1]		0.1 – 3.0
Chamfering [1]		0.1 – 3.0
Lollipop [1]		0.1 – 3.0
Barrel		0.5 – 3.0
Helical Milling				0.1 – 2.0
Engraving [1]		0.1 – 3.0
[1] Effective DC (DCap) – Cutting diameter at cutting depth ap
