ANGULAR HEAD ST20 90 DEG SPINDLE.
The HSM Jet Spindle – GreenJET & HPC TR models are the culmination of an advanced R&D initiative in high-speed spindle engineering; offering speeds from 35,000 to 55,000 rpm while the main machine spindle remains idle. It’s ideal for a wide range of semi-finishing and finishing applications using small cutting tools such as milling, drilling, thread-milling, engraving, chamfering, deburring, grinding and more.
| Operational Data | TR GJET | TR HPC |
|---|---|---|
| Operating range of coolant pressure [BAR]* | 20-40 | 15-70 |
| Operating range of coolant flow rate [L/min] | 10-20 | 16-22 |
| Rotational spindle speed [Krpm]* | 35-55 | 18-45 |
| Optimum cutting tool diameter [mm] Drilling | 0.3-2.0 | 0.3-3.0 |
| Optimum cutting tool diameter [mm] Milling | 0.3-3.5 | 1.0-4.0 |
| Max output power [Kw] | 0.5 | 1.5 |
| Compatible adaptor models | FC, RC | FC, RC |
| Weight (Kg) | 2.2 | 2.3 |
- Coolant pressure is measured from the spindle inlet
- Rotational spindle speed is based on coolant pressure and flow rate
- Spindle speed may vary up to 7%
- Contact factory for other details
ST20 Angle Head 90 Degrees
| Designation | P/N | Adaptor | L mm | Tool d max mm | Kg |
|---|---|---|---|---|---|

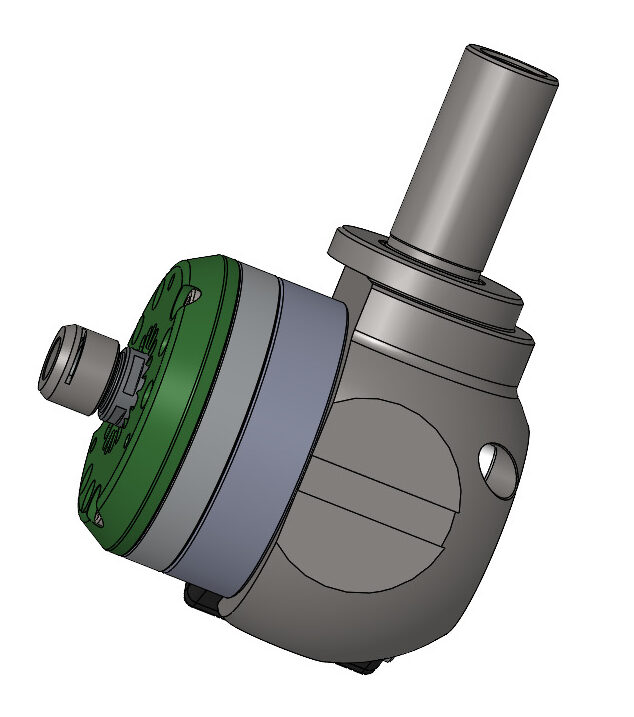

| TJS GJET TR ANGLE HEAD ST20 90 DEG | 37-035-998 | ST20 | 104.0 | 4.0 | 2.2 |
ST20 Angle Head 90 Degrees
| Designation | P/N | Adaptor | L mm | Tool d max mm | Kg |
|---|---|---|---|---|---|

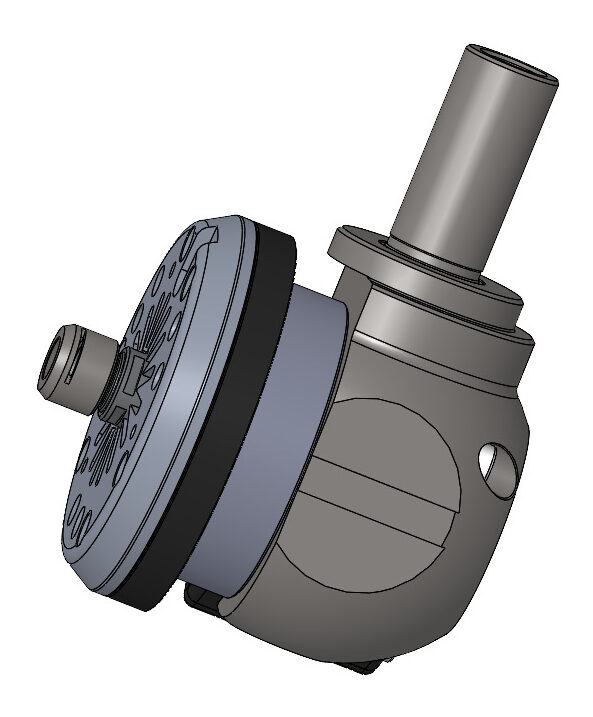

| TJS HPC TR ANGLE HEAD ST20 90 DEG | 47-055-998 | ST20 | 108.0 | 6.0 | 2.3 |
