Colibri Spindle Products
SPEED Jet Spindle ST20 BT30 BT40 HSK A63 HSK A40 C5 C6 SK40 CAT40 ER32

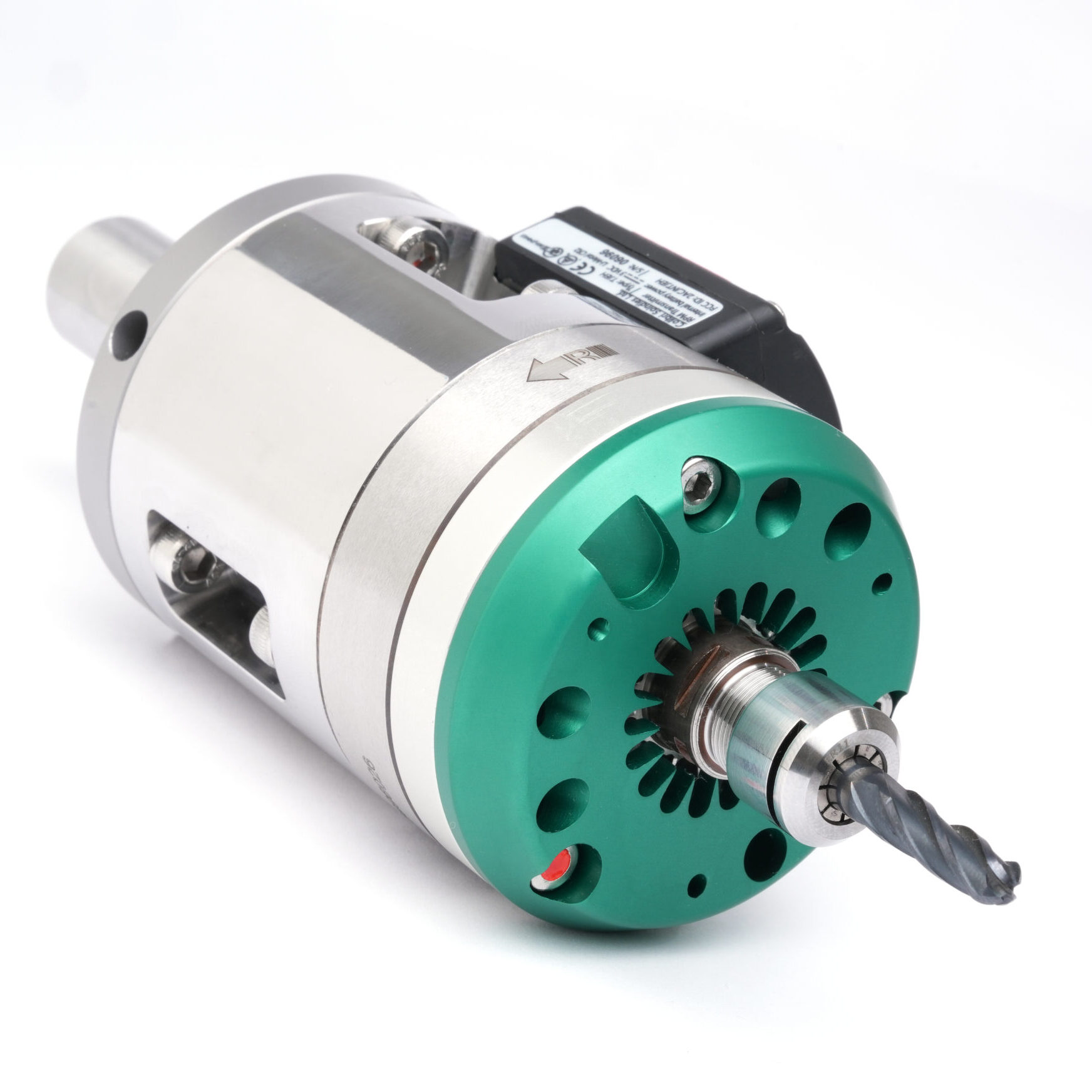

PRO Jet Spindle – SPEED Jet – uses the machine’s existing coolant supply as a pressurized energy source, rotating a turbine from 30,000-60,000 RPMs; greatly improving machining time, surface quality and tool life.

Designed for small diameter tools in a wide range of semi-finishing and finishing operations including Milling, drilling, thread milling, engraving, chamfering/deburring and fine radial grinding.

Wireless transmitter on the spindle, sends accurate RPM data in real-time to an external Display Unit.



JET SPINDLE OPERATING PARAMETERS SPEED JET
COOLANT 20 BAR 30 BAR 40 BAR Terms of Use
Supply Diameter 4 mm Collet ER11 AA/UP
Flow Rate  10 L/min 15 L/min 20 L/min Runout 3 micron
Speed 33,000 RPM 44,000 RPM 55,000 RPM Warranty 1 Year
Max power (W) / torque (Nmm) 37 / 12 76 / 18 115 / 25





Application P M N [Al] N [Cu] S [Ti]
Drilling 2.0 3.0 2.0
Profile Milling 6.0 4.0 6.0 4.0
Slot Milling 4.0 3.0 4.0 3.0
Shoulder Milling 4.0 6.0
Chamfering 6.0
Deburring
Engraving

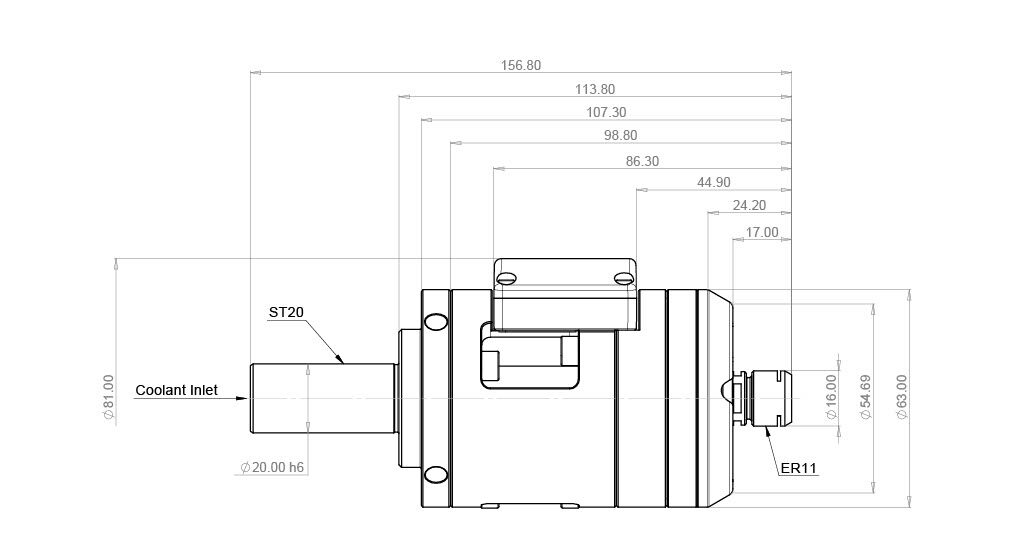

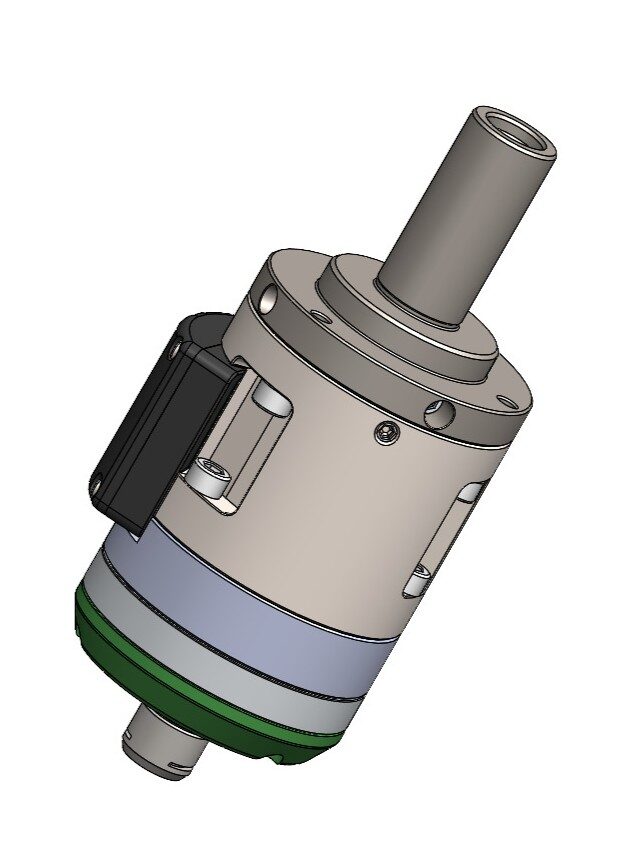

SPEED Jet ST20

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet ST20 37-085-099 ST20 113.80 4.0 1.7

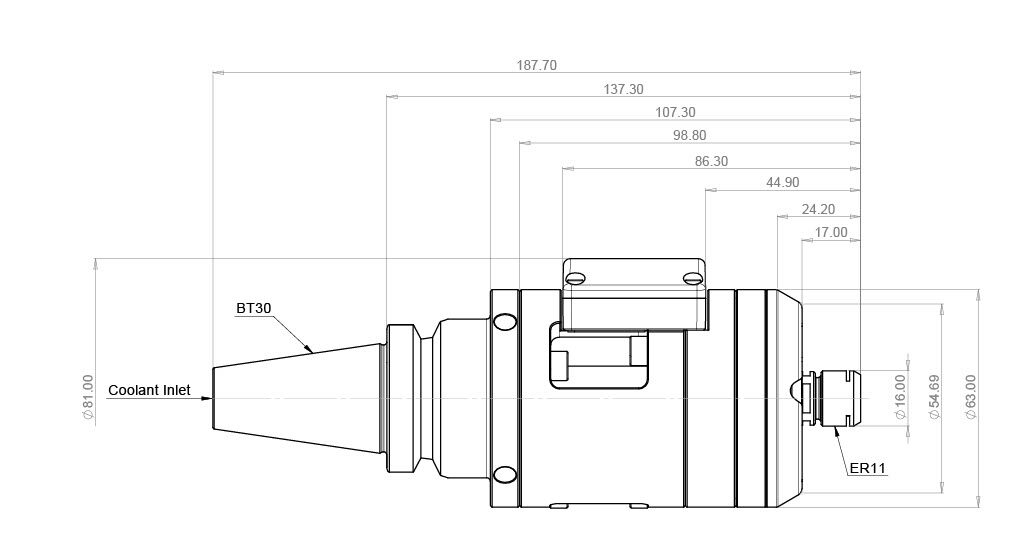

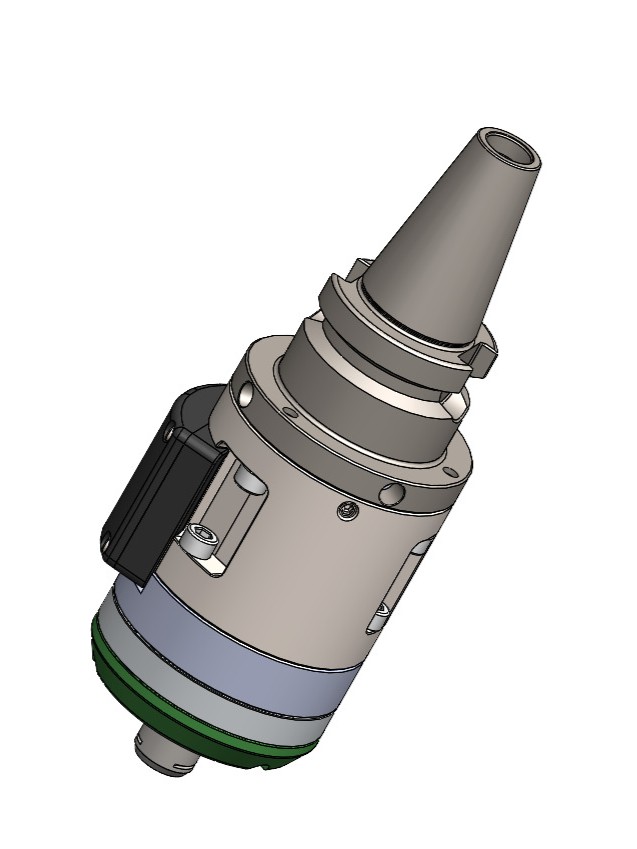

SPEED Jet BT30

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet BT30 37-085-399 BT30 137.30 4.0 2.0

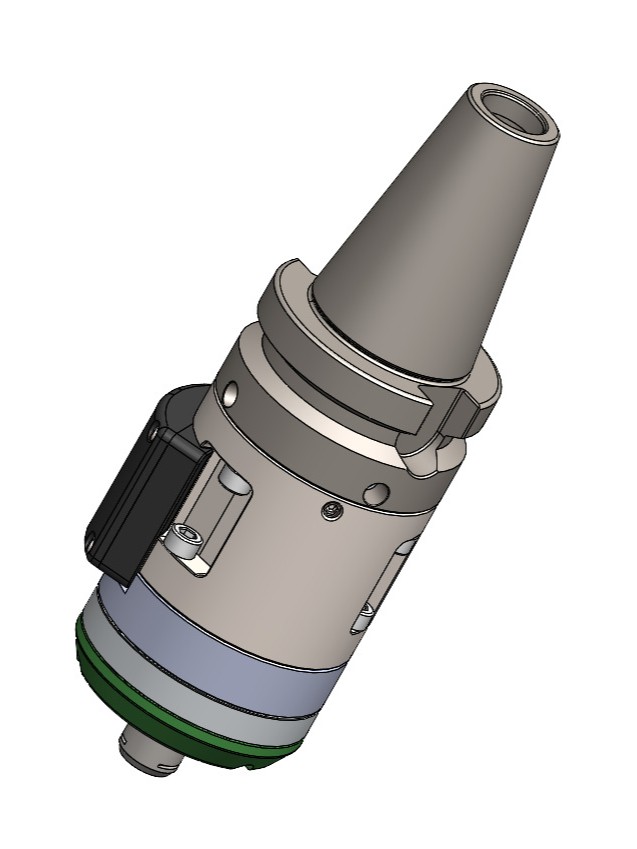

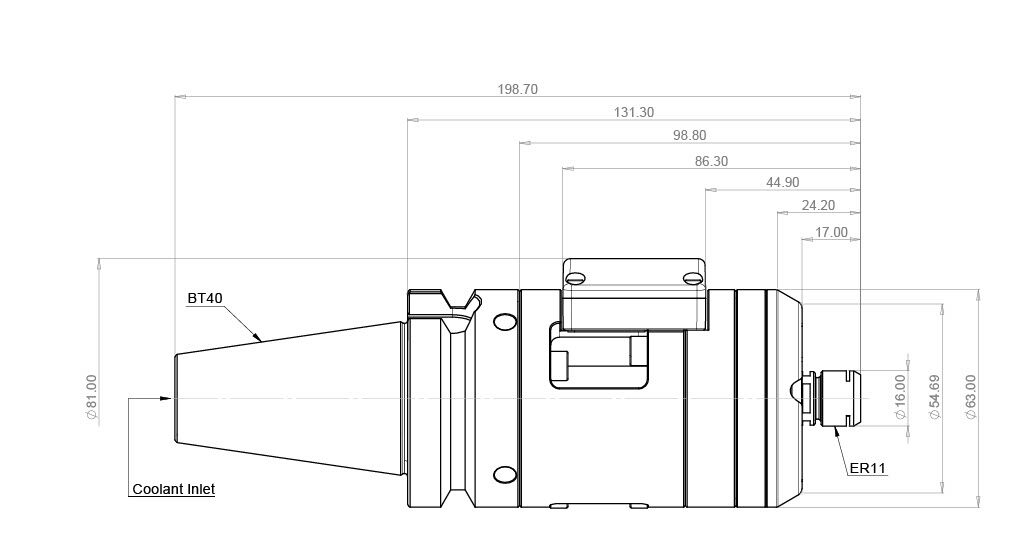

SPEED Jet BT40

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet BT40 37-085-799 BT40 131.30 4.0 2.5

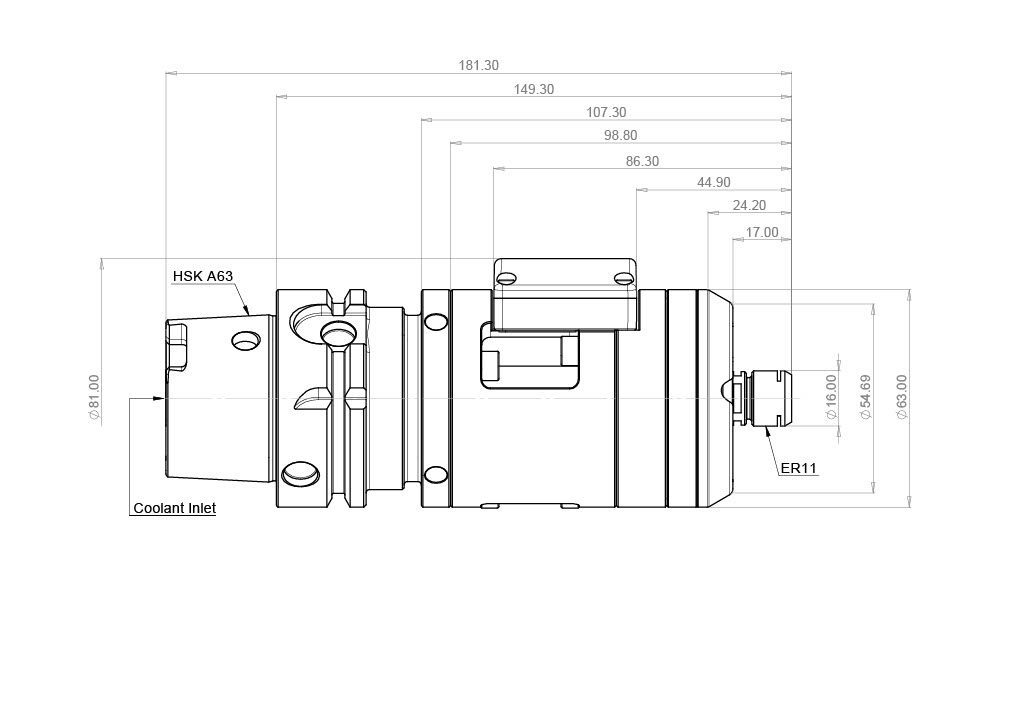

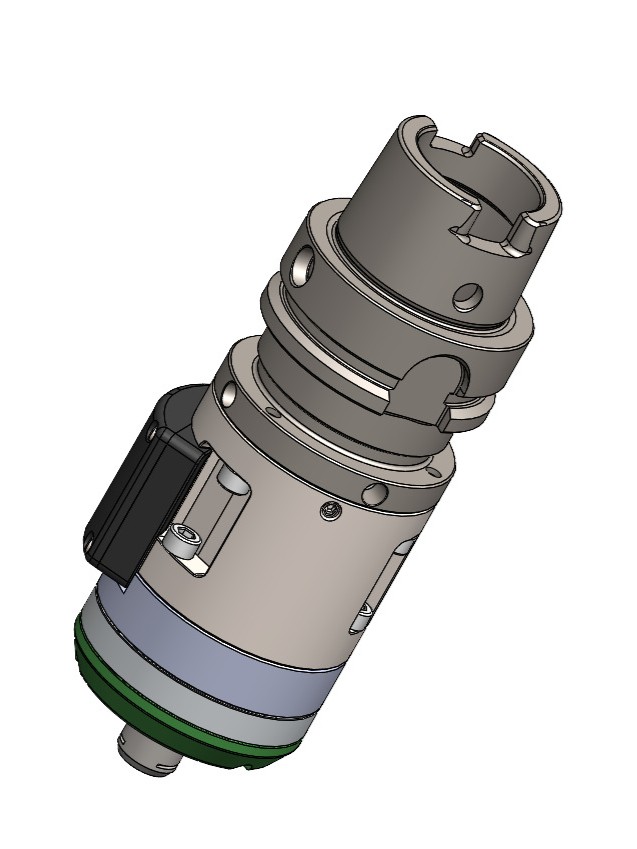

SPEED Jet HSK A63

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet HSK A40 37-085-249 HSK A40 144.30 4.0 1.9

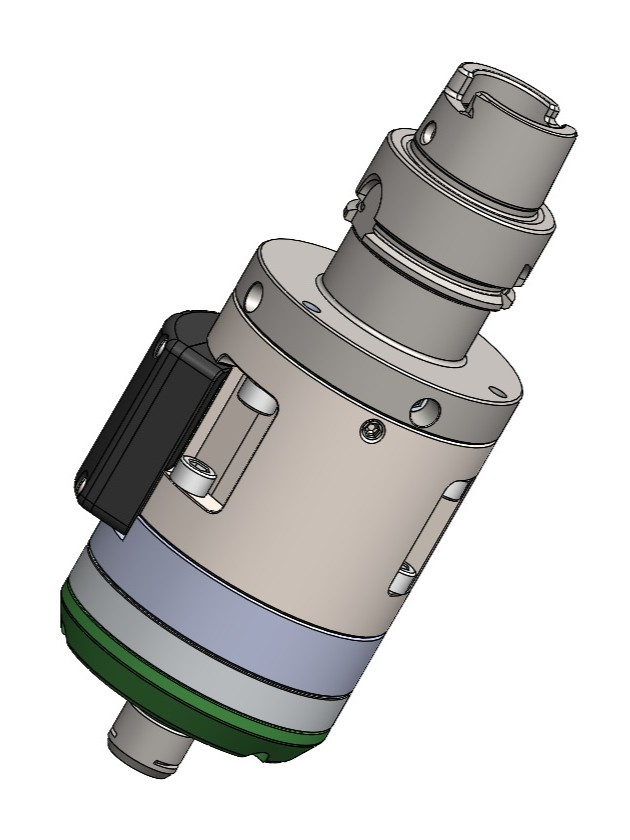

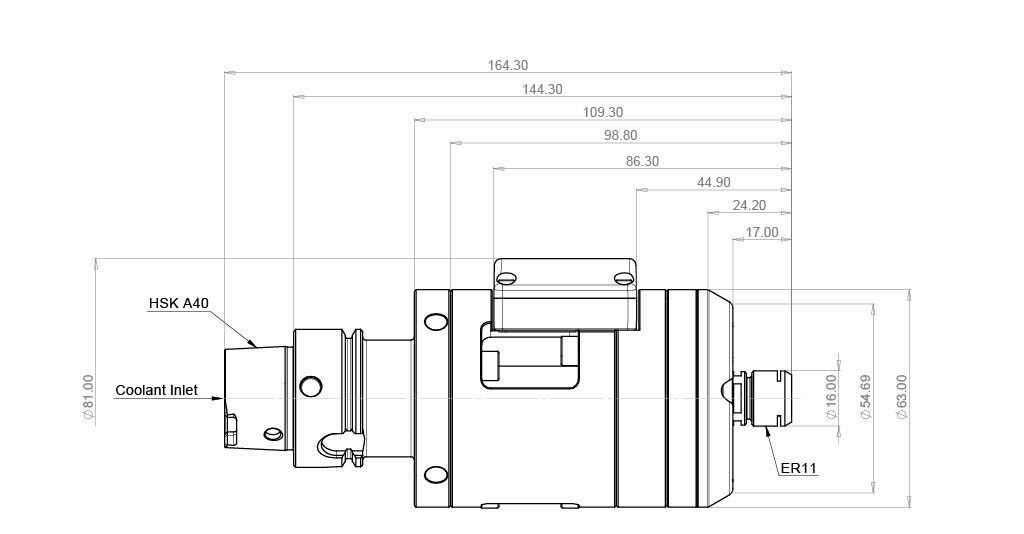

SPEED Jet HSK A40

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet HSK A63 37-085-299 HSK A63 149.30 4.0 2.4

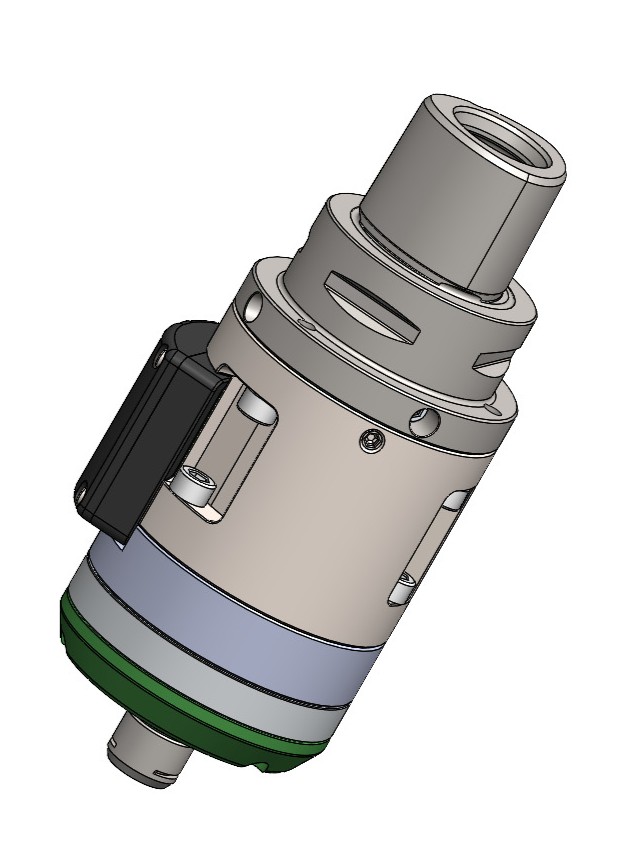

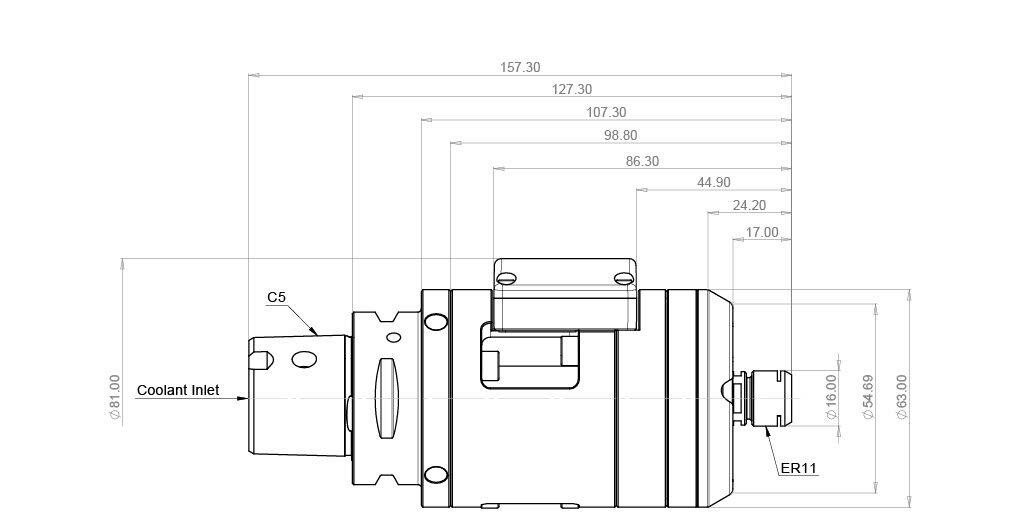

SPEED Jet C5

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet CAPTO C5 37-085-499 C5 127.30 4.0 2.0

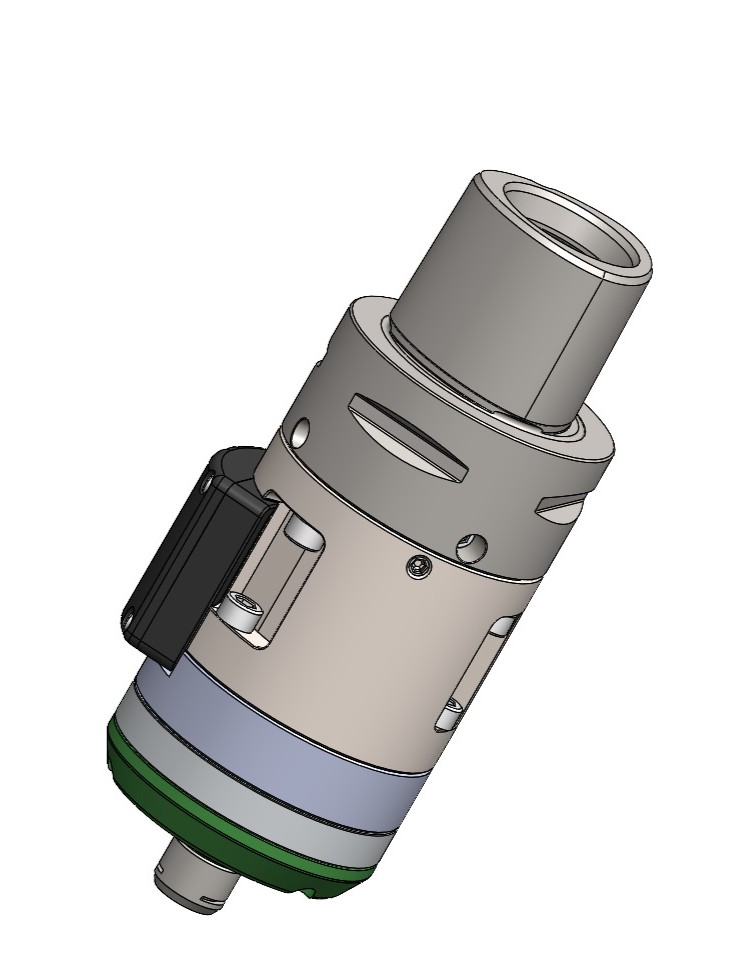

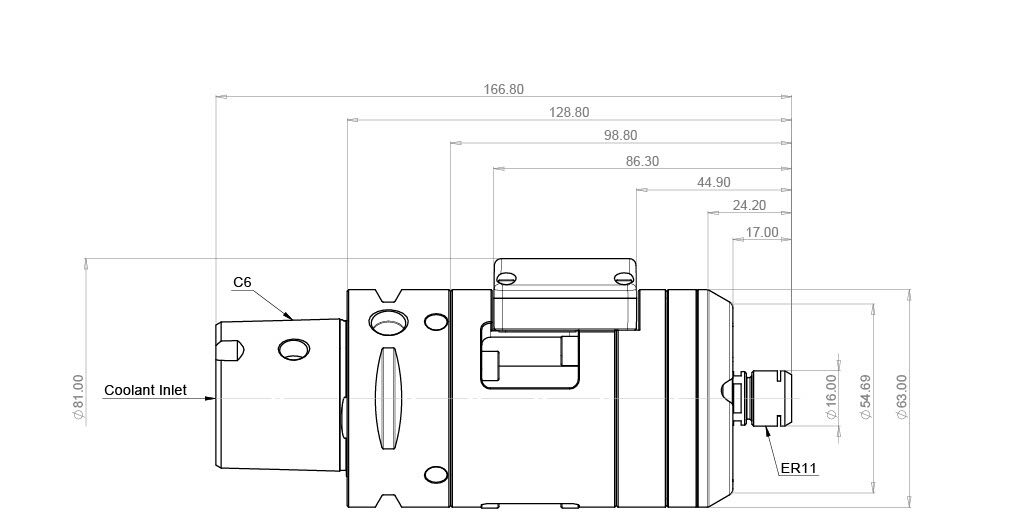

SPEED Jet C6

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet CAPTO C6 37-085-199 C6 128.80 4.0 2.3

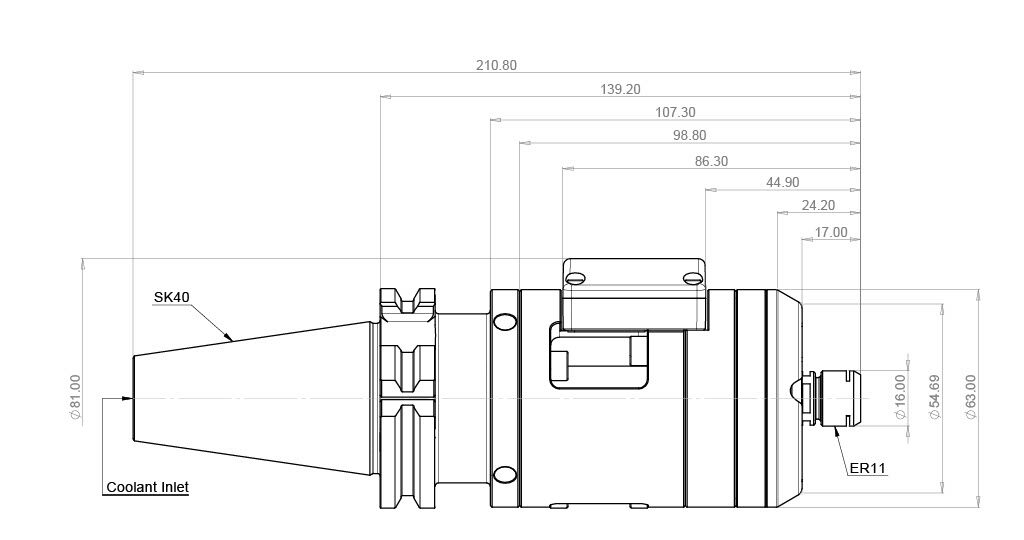

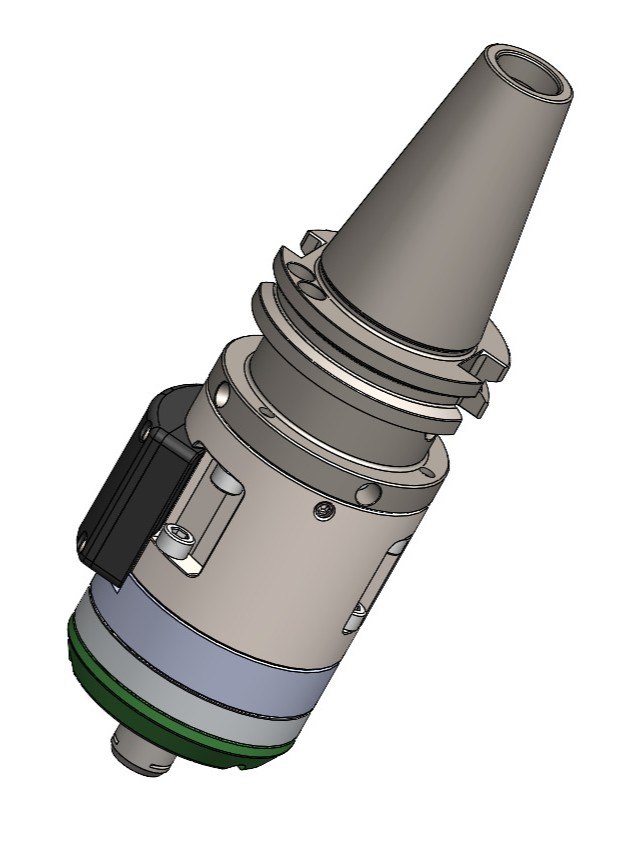

SPEED Jet SK40

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet SK40 37-085-849 SK40 139.20 4.0 2.6

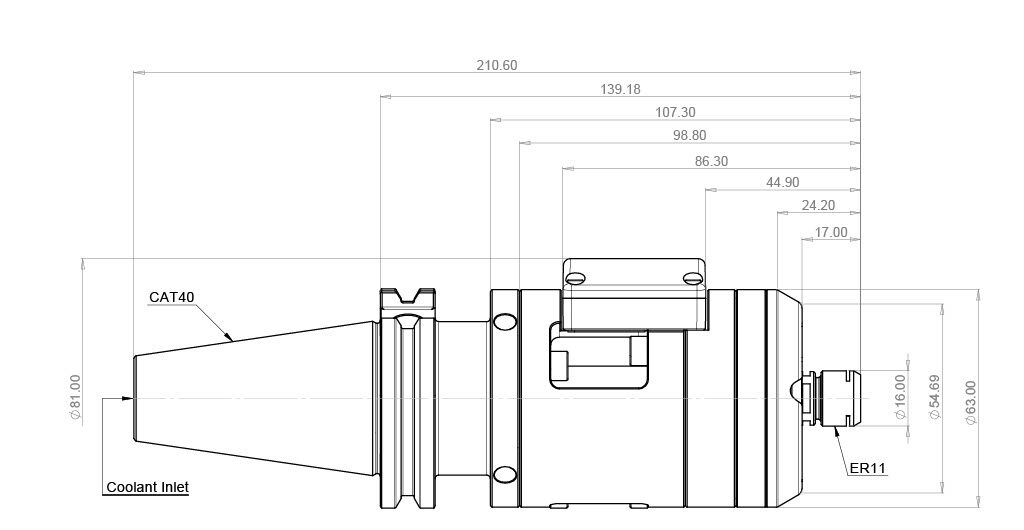

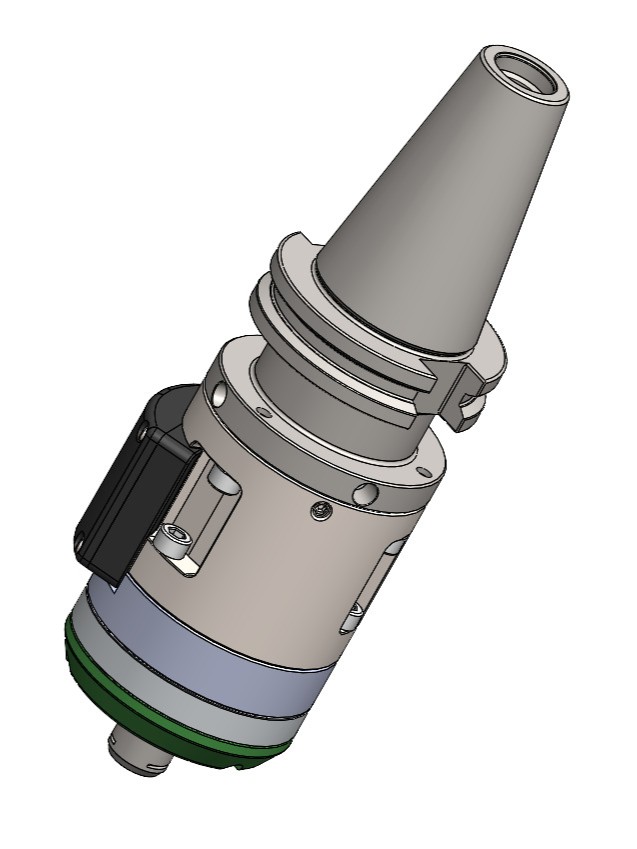

SPEED Jet CAT40

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet CAT40 37-085-699 CAT40 139.20 4.0 2.5

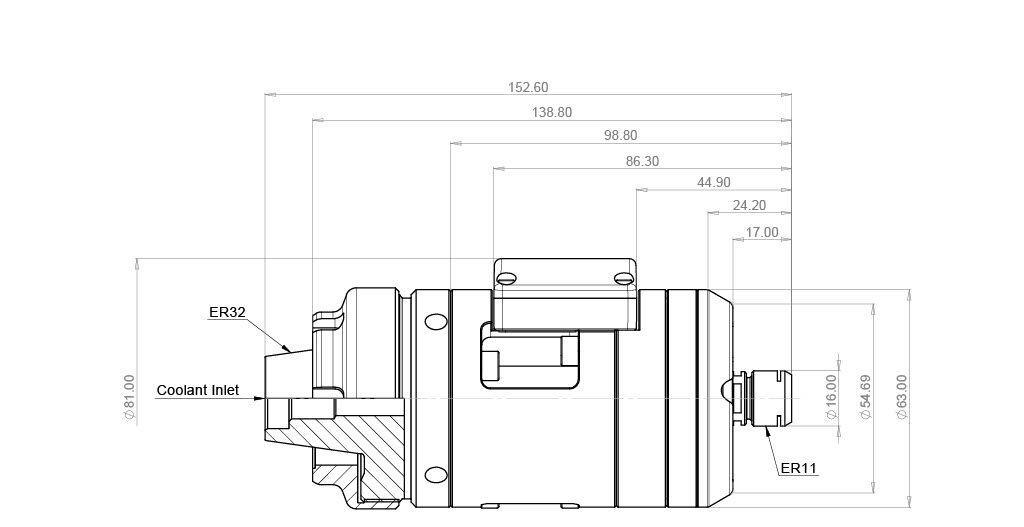

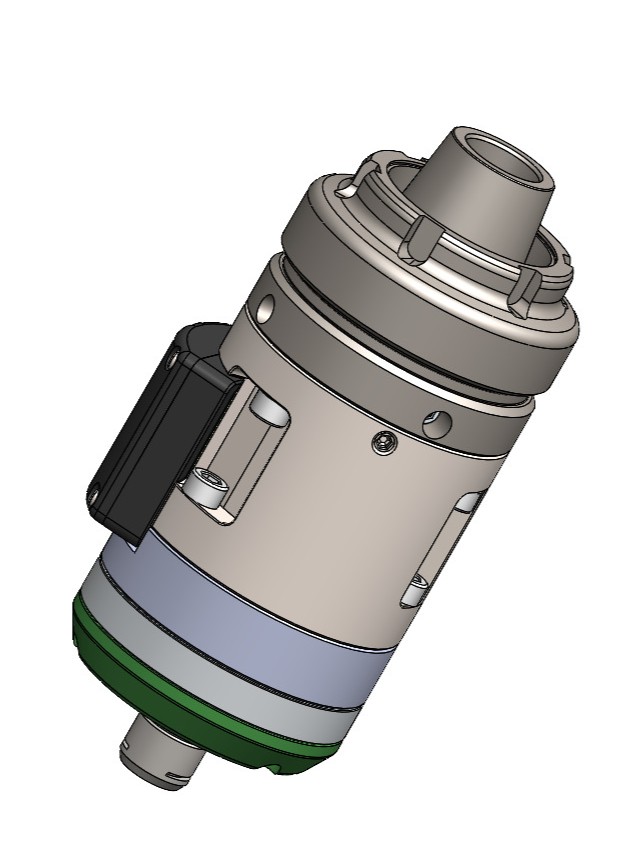

SPEED Jet ER32

Designation P/N Adapter L [mm] Tool d max mm Kg
SPEED Jet ER32 37-085-599 ER32 125.80 4.0 2.2

Contact Us For A Quote
