POWER Jet Catalog

Colibri Spindle Products

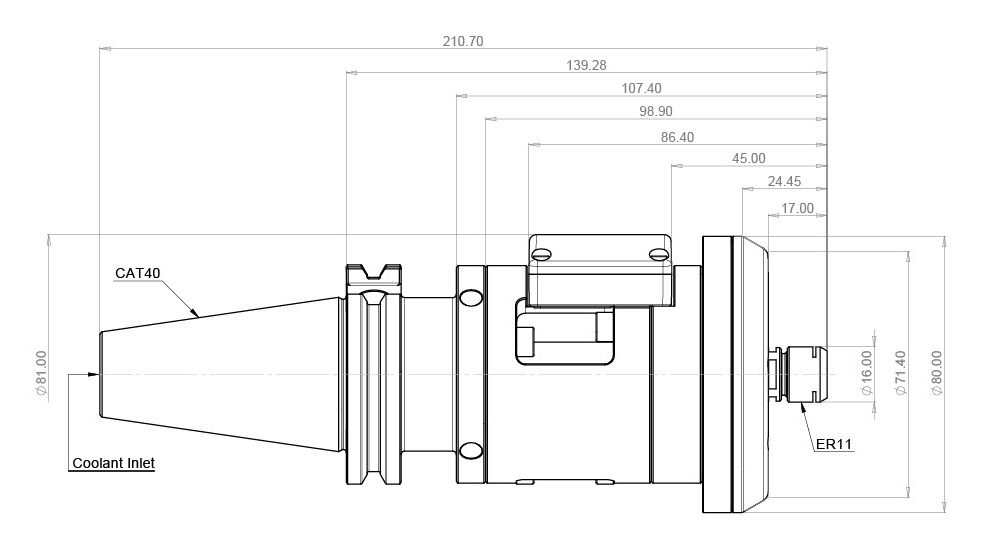

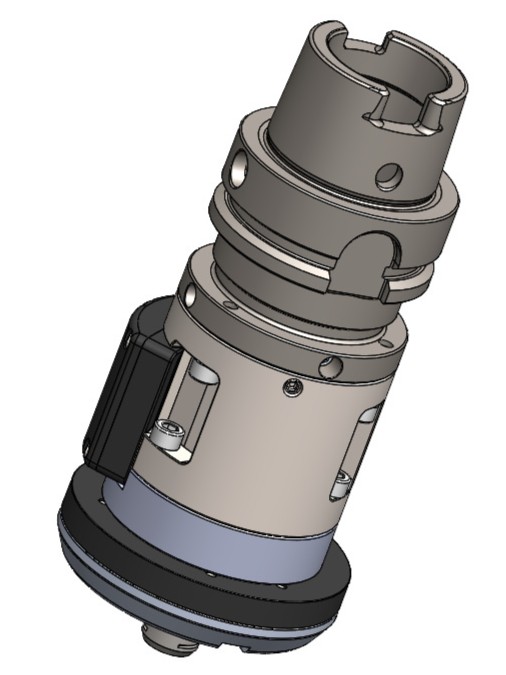

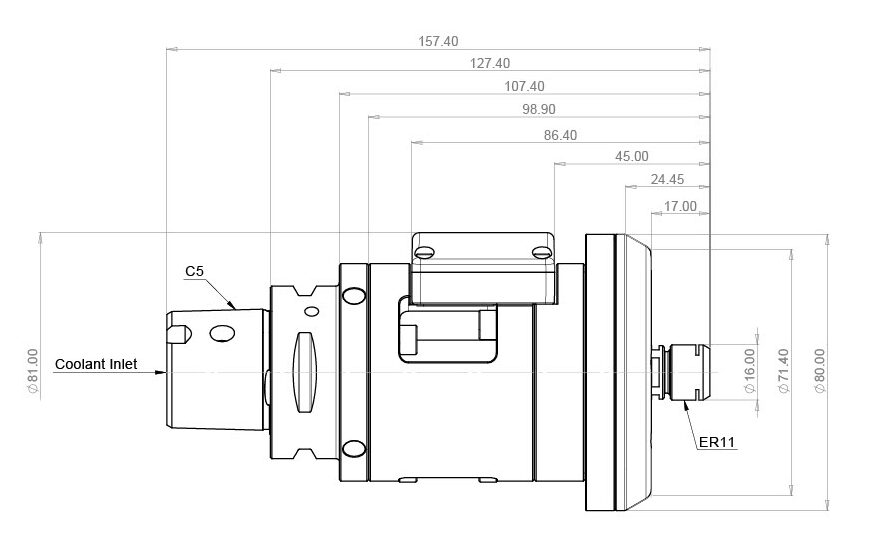

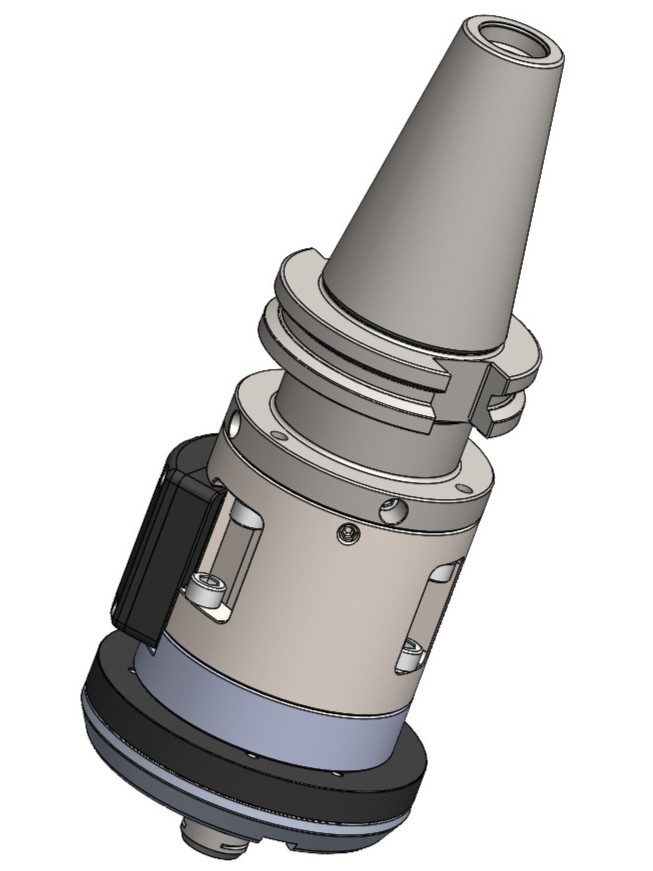

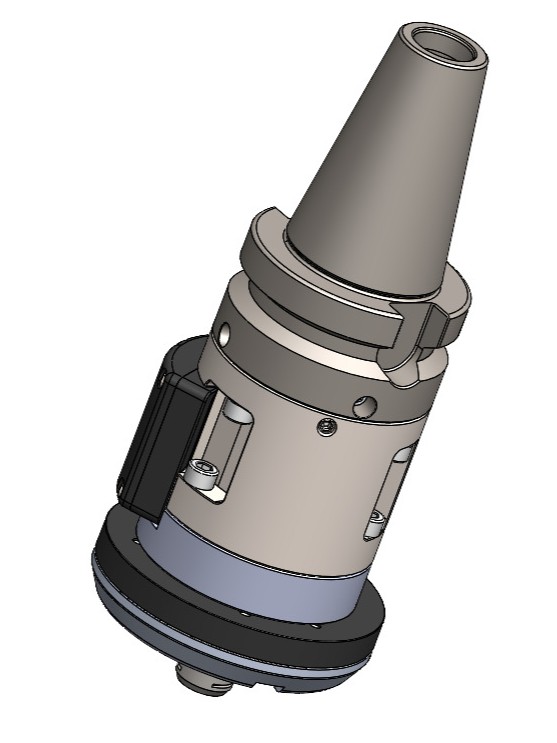

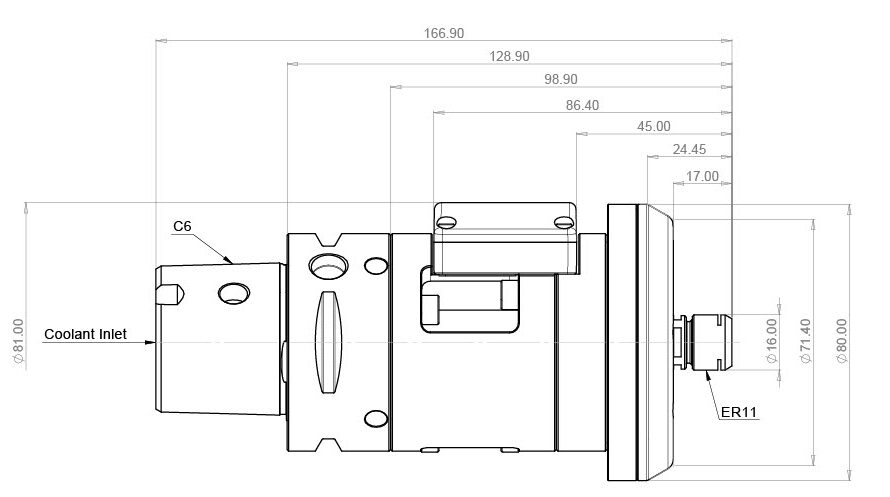

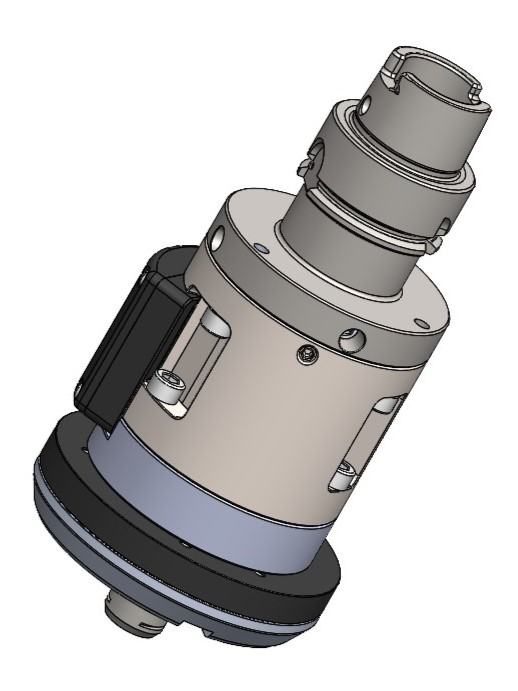

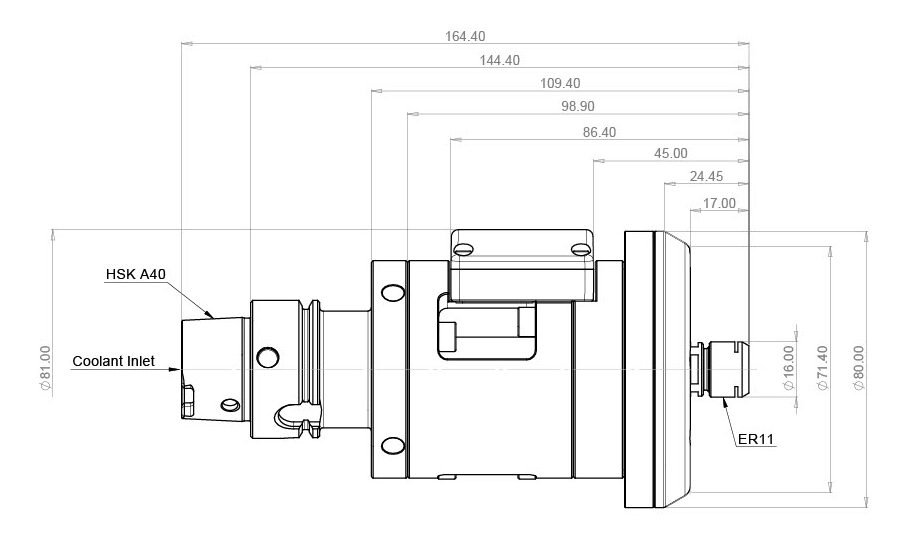

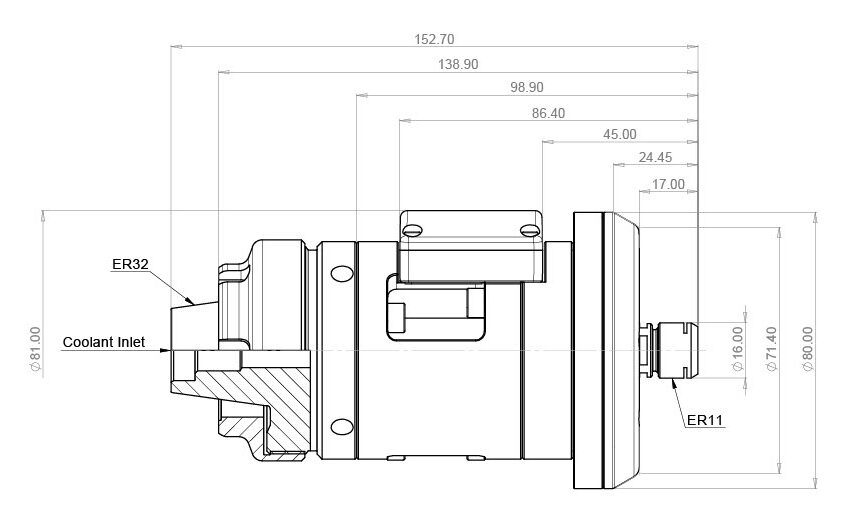

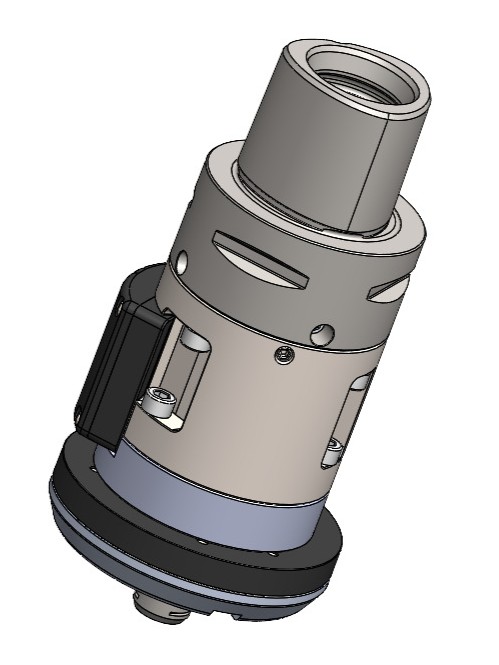

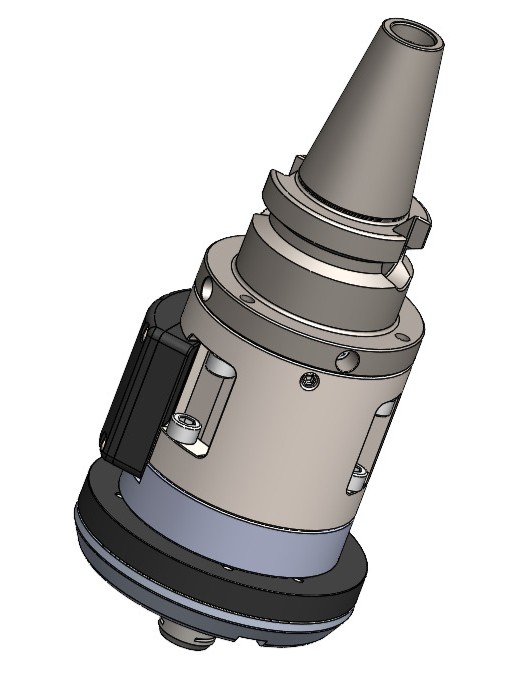

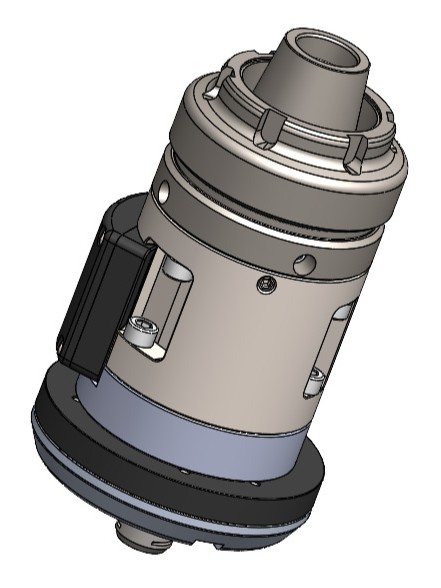

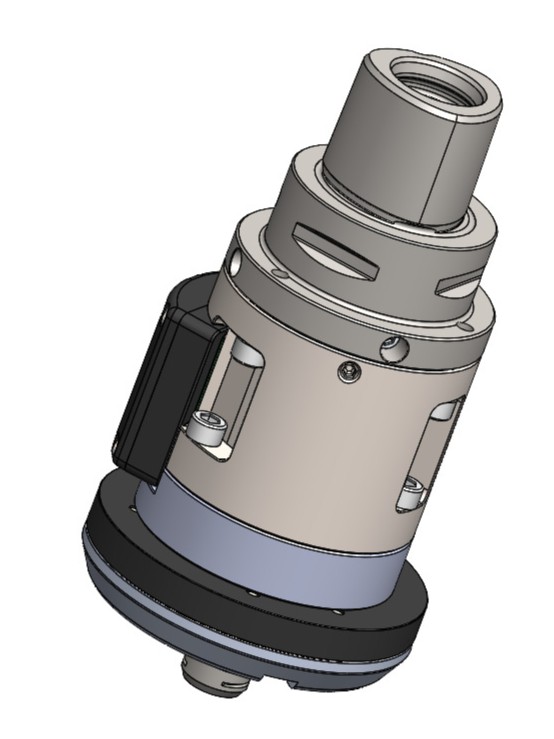

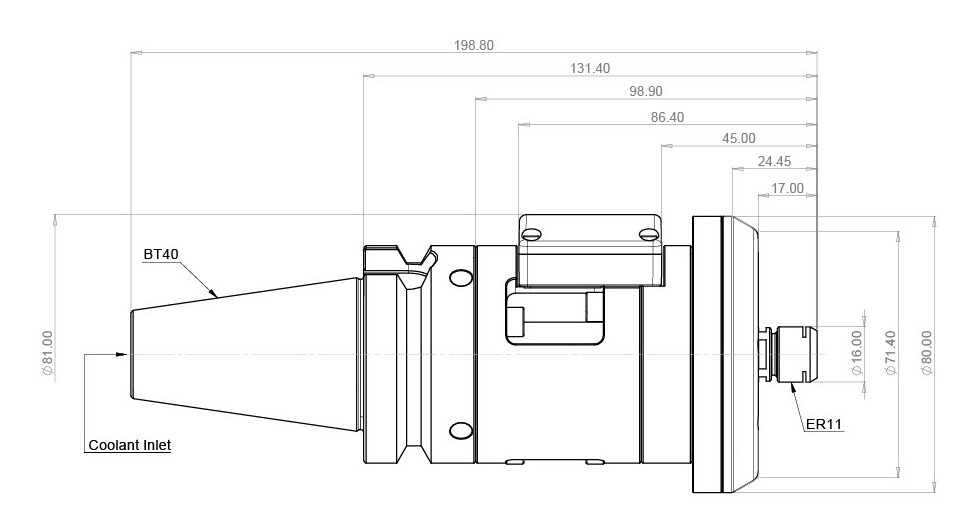

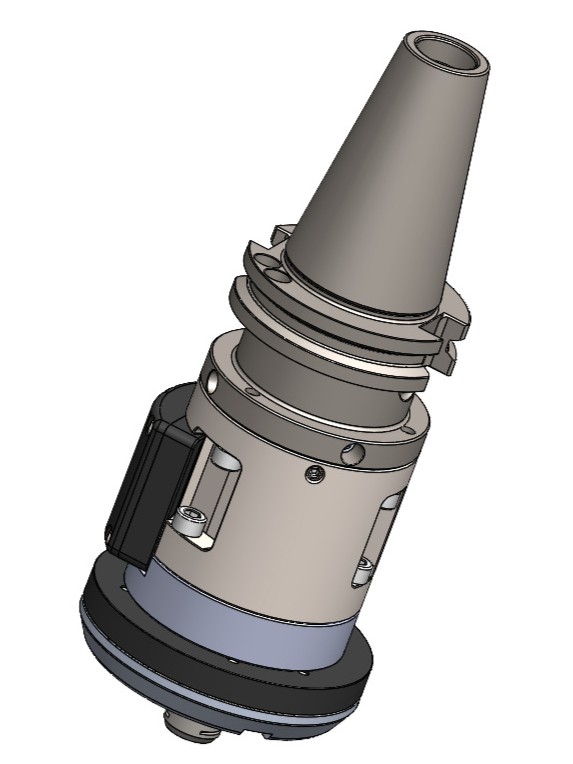

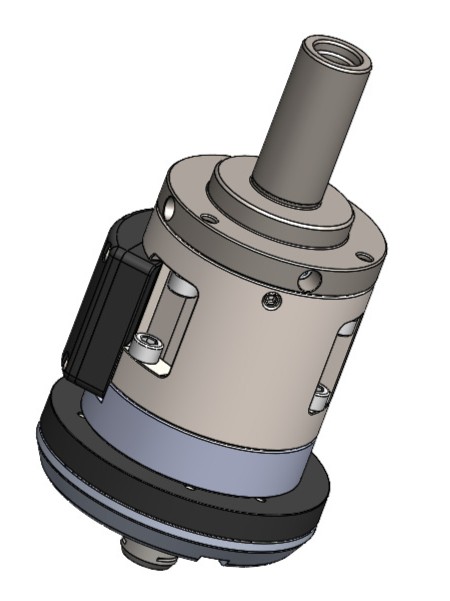

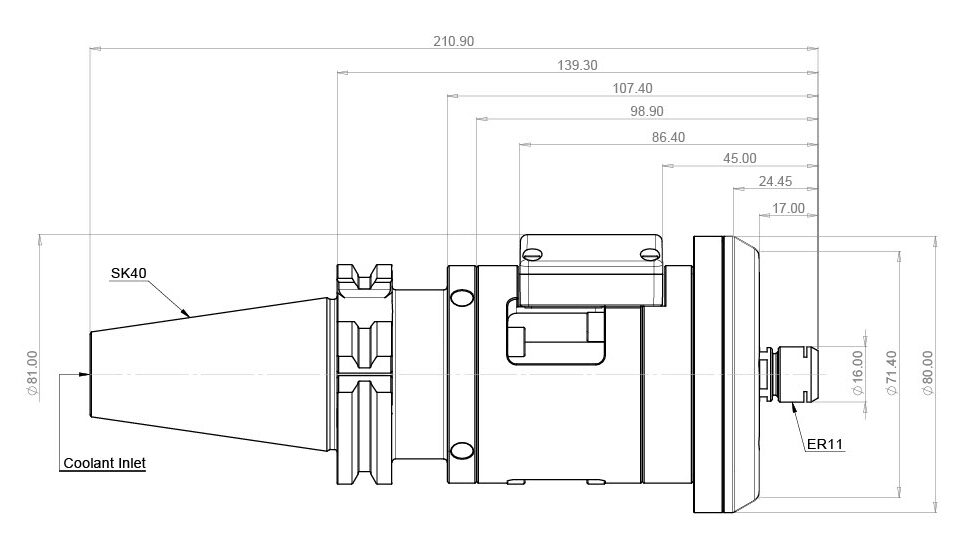

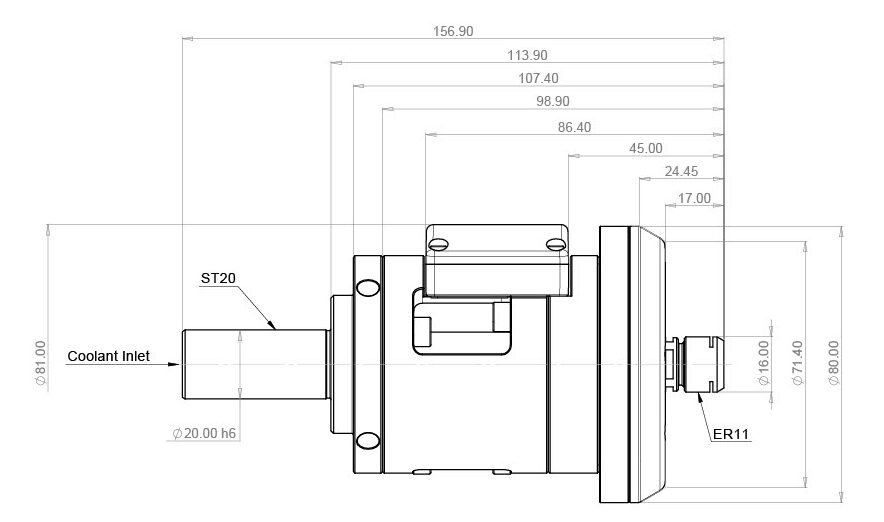

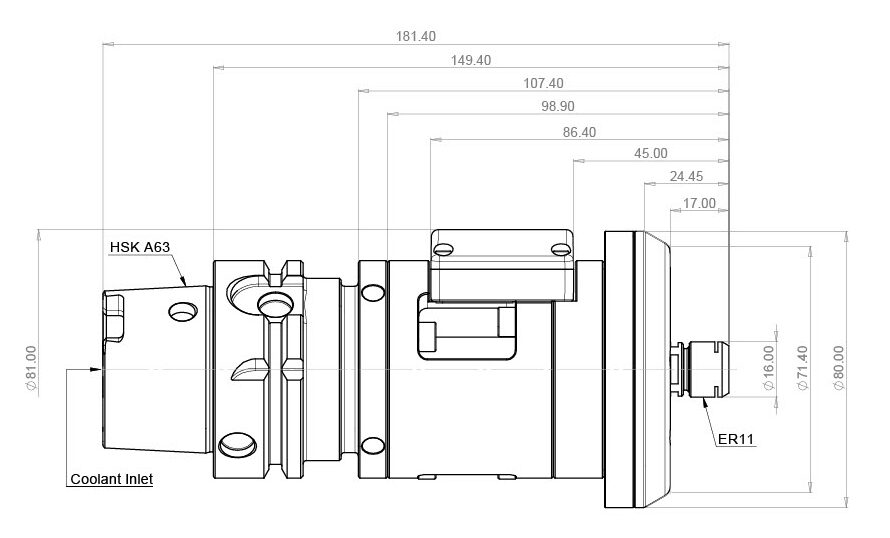

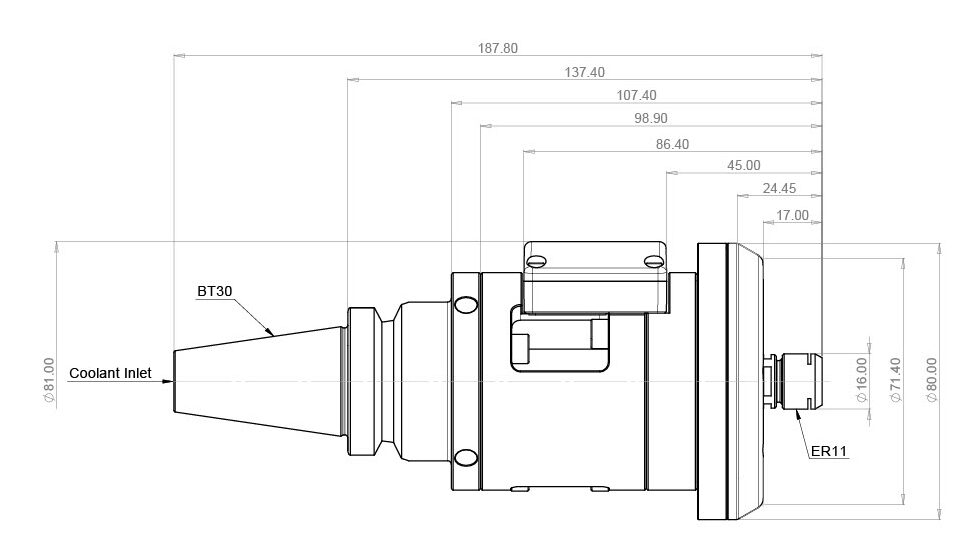

POWER Jet Spindle ST20 BT30 BT40 HSK A63 HSK A40 C5 C6 SK40 CAT40 ER32

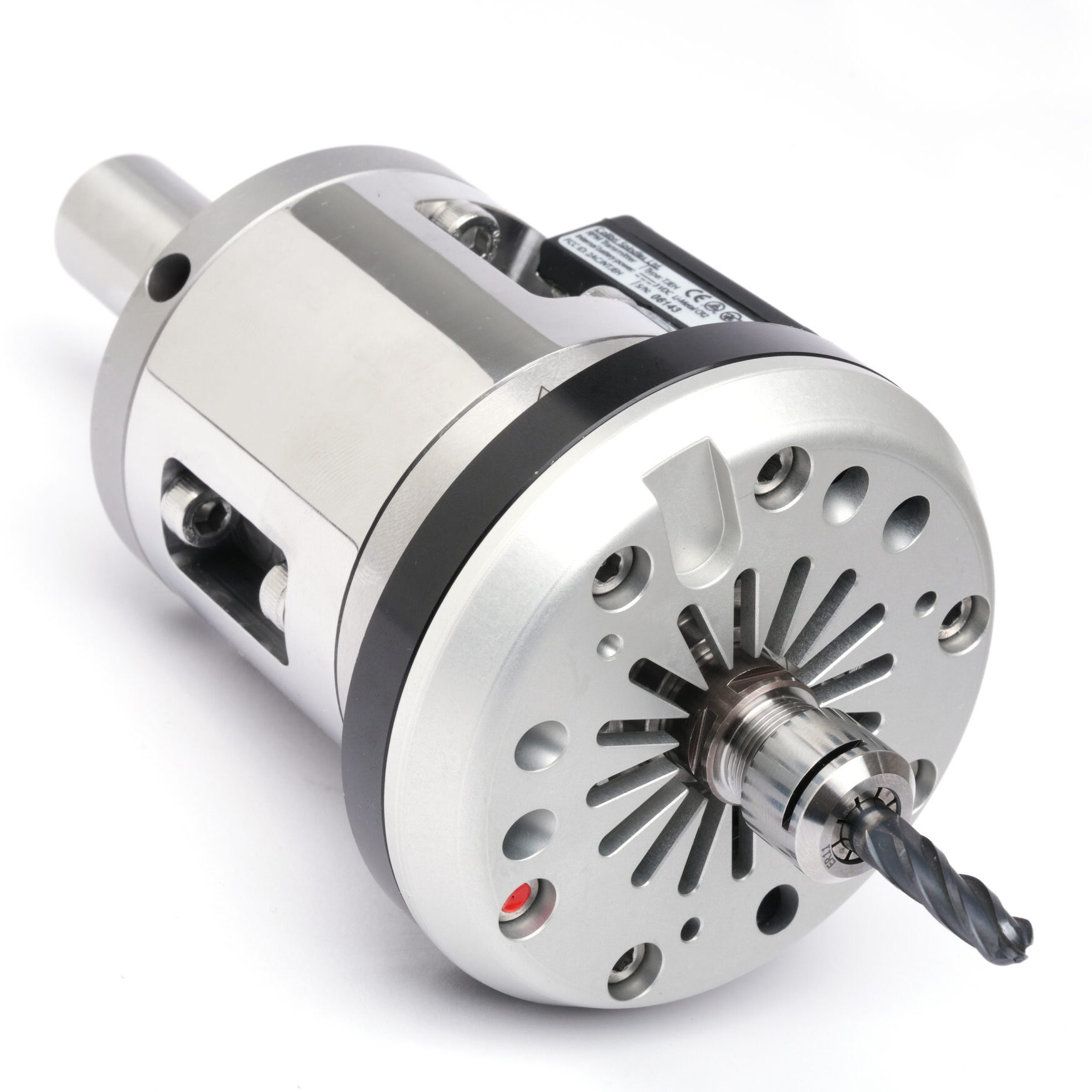

The High Power Coolant-Driven Jet Spindle (POWER Jet) model, which uses the machine’s own coolant supply to drive the spindle, is the most powerful jet spindle for high speed machining in the world.

Ideal for machines with either lower or high pressure capabilities. The POWER Jet provides better machining results, longer tool life and increased efficiency with small tools on soft metals at 15 bar, small to medium tools on harden steel from 20 bar and with medium sized tools on soft metals. The spindle’s patented design is suitable for the growing number of machines in the market that use high pressure narrow beam coolant or high pressure coolant deep drilling tools.

• For finishing/semi-finishing using small to medium diameter cutting tools
• Plug & Play – no external feeds or pre-installation, fits ATC/turret
• On-board wireless RPM transmitter to Jet Spindle Monitor App

JET SPINDLE OPERATING PARAMETERS					POWER JET
COOLANT	15 BAR	20 BAR	40 BAR	70 BAR	Terms of Use
Supply Diameter	4 mm				Collet	ER11 AA/UP
Flow Rate	10 L/min	12 L/min	16 L/min	22 L/min	Runout	3 micron
Speed	20,000 RPM	25,000 RPM	35,000 RPM	45,000 RPM	Warranty	1 Year
Max power (W) / torque (Nmm)	53 / 20	71 / 27	188 / 57	409 / 93
